Vannes à papillon - Sylax

  • NITRILE CARBOXYLE
    θ +5°/+120°
    Fluides abrasifs, pulvérulents
  • CORPS FONTE FGSPFA 10 bar (water) / PS (p.84)
    Sylax

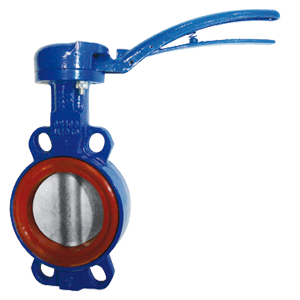

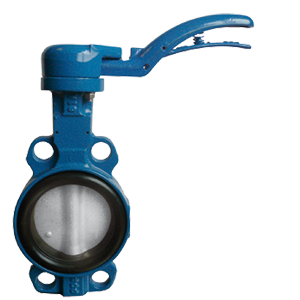

    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    NITRILE CARBOXYLEKg
    23/40149G0426132.9
    50149G0356713.2
    65149G0356723.7
    80149G0356734.0
    100149G0934547.1
    125149G0172477.7
    150149G0356769.2
    200149G035677 (1)16.7
    250149G035678 (1)23.1
    300149G035679 (1)24.7
    CORPS FONTE FGLPFA 10 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    NITRILE CARBOXYLEKg
    23/40149G0450062.6
    50149G0450073.3
    65149G0450083.7
    80149G0450094.0
    100149G0450106.3
    125149G0450117.8
    150149G0450129.3
    200149G045014 (1)16.9
    250149G045015 (1)23.3
    300149G045017 (1)25.0
  • Sylax

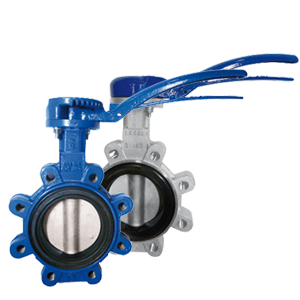

    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16
    Raccordement PN 10/16
    Dn
    mm
    NITRILE CARBOXYLEKg
    32149G0450313.4
    40149G0450323.4
    50149G0450333.7
    65149G0450345.1
    80149G0450355.0
    100149G0450367.7
    125149G04503710.1
    150149G04503811.7
    200149G045039 (2)23.2
    250149G045040 (2)28.2
    300149G045044 (2)30.5
    200149G045042 (1)23.7
    250149G045043 (1)28.2
    300149G045041 (1)30.5
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16
    Raccordement PN 10/16
    Dn
    mm
    NITRILE CARBOXYLEKg
    50149G0450223.7
    65149G0450244.2
    80149G0429645.1
    100149G0450257.6
    125149G04502610.2
    150149G04502711.8
    200149G045028(1)23.1
    250149G045029(1)29.9
    300149G045030(1)31.7
  • FKM
    θ +5°/+180°
    Fluides industriels, acides, bases, hydrocarbures
  • CORPS FONTE FGSPFA 10 bar (water) / PS (p.84)
    Sylax

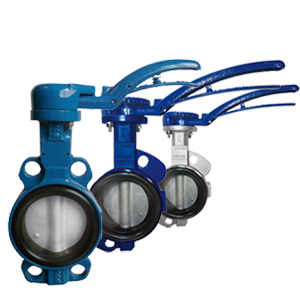

    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    ELAST. FLUOREKg
    65149G0279363.8
    80149G0227234.0
    100149G0134936.4
    125149G0394867.9
    150149G0621489.6
    200149G04576817.2
    CORPS FONTE FGLPFA 10 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    ELAST. FLUOREKg
    32/40149G0120522.9
    50149G0120543.3
    65149G0192773.8
    80149G0160854.1
    100149G0120637.2
    125149G0120667.9
    150149G0727199.4
    200149G03655617.0
  • Sylax

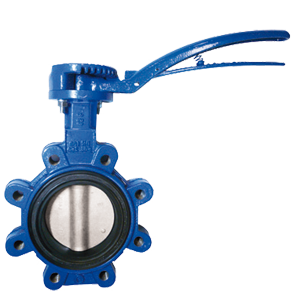

    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16 (3) PN10 (4) PN16
    Raccordement PN 10/16
    Dn
    mm
    ELAST. FLUOREKg
    50149G0395293.7
    65149G0395304.3
    80149G0395035.2
    100149G0395047.7
    125149G03953110.4
    150149G07376912.1
    200149G046218(3)23.4
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16 (3) PN10 (4) PN16
    Raccordement PN 10/16
    Dn
    mm
    ELAST. FLUOREKg
    32149G0221883.4
    40149G0221923.4
    50149G0146863.8
    65149G0222005.2
    80149G0222045.1
    100149G0599937.8
    125149G01469210.2
    150149G07377011.9
    200149G046220(4)23.5
    200149G046219(3)24.0
  • CSM
    θ +5°/+90°
    Fluides industriels avec acides et bases faibles
  • CORPS FONTE FGLPFA 16 bar (water) / PS (p.84)
    Sylax

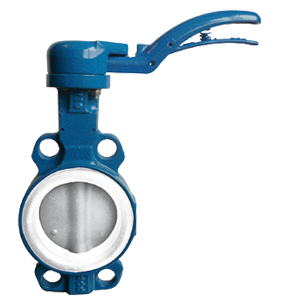

    SYLAX OREILLES DE CENTRAGE
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    CSM Kg
    23/40149G0447792.6
    50149G0567213.3
    65149G0601334.6
    80149G0601344.0
    100149G0468456.4
    125149G0277828.3
    150149G0601358.7
    200149G04578516.9
    CORPS FONTE FGSPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    CSM Kg
    23/40149G0386882.9
    50149G0145813.3
    65149G0145843.8
    80149G0266054.0
    100149G0266047.1
    125149G0386858.3
    150149G0601369.2
    200149G04578016.8
  • Sylax

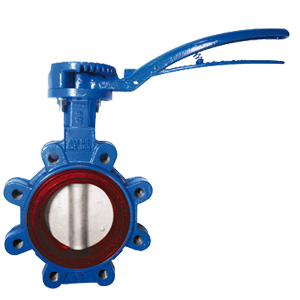

    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 10 bar et PN10 (2) PN16
    Raccordement PN 10/16
    Dn
    mm
    CSM Kg
    50149G0395013.7
    65149G0395025.3
    80149G0395175.2
    100149G0395187.7
    125149G03950510.8
    150149G06013711.9
    200149G045787(1)23.2
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 10 bar et PN10 (2) PN16
    Raccordement PN 10/16
    Dn
    mm
    CSM Kg
    32149G0167564.5
    40149G0167574.5
    50149G0167583.7
    65149G0167595.2
    80149G0167605.1
    100149G0167617.8
    125149G01676210.7
    150149G04314611.8
    200149G045791(2)23.2
    200149G045790(1)23.7
  • EPDM blanc
    θ +8°/+80°
    Circuits industriels, poudres
  • CORPS FONTE FGLPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    EPDM BLANC Kg
    32/40149G0281862.6
    50149G0248713.3
    65149G0395073.8
    80149G0135514.0
    100149G0395086.3
    125149G0395097.8
    150149G0281879.2
    200149G04421116.8
    CORPS FONTE FGSPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    EPDM BLANC Kg
    32/40149G0182492.9
    50149G0182533.3
    65149G0182573.8
    80149G0182614.0
    100149G0172367.1
    125149G0182697.8
    150149G0182739.1
    200149G02646216.7
  • Sylax

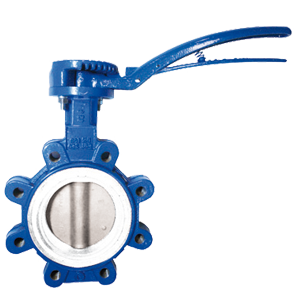

    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 10 bar et PN10 (2) PN16
    Raccordement PN 10/16
    Dn
    mm
    EPDM BLANC Kg
    50149G0395213.7
    65149G0395224.3
    80149G0395236.3
    100149G0395247.6
    125149G0395259.0
    150149G03952611.7
    200149G045786(1)23.1
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 10 bar et PN10 (2) PN16
    Raccordement PN 10/16
    Dn
    mm
    EPDM BLANC Kg
    32149G0160554.5
    40149G0167644.5
    50149G0167653.7
    65149G0167665.2
    80149G0167675.1
    100149G0167687.7
    125149G01677010.1
    150149G01676911.6
    200149G045789(2)23.1
    200149G045788(1)23.7
  • EPDM
    θ -10°/+120° avec coprs FGL
    θ -15°/+120° avec coprs FGS
    Eau potable, circuits généraux et process industriels, eau de piscine
  • NITRILE
    θ +5°/+85°
    Circuits généraux et process industriels, hydrocarbures
  • CORPS FONTE FGLPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    1) PFA = PS maxi = 10 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    EPDMNITRILEKg
    25149G059712(1)149G036917(1)2.4
    32/40149G011254149G0113752.6
    50149G011266149G0113783.3
    65149G011287149G0113873.7
    80149G011297149G0113944.0
    100149G011316149G0113996.3
    125149G011334149G0114047.7
    150149G059260149G0114099.2
    200149G016281149G01628316.8
    250149G41090149G016284(1)23.4
    300149G023904149G41111(1)25.6
    CORPS FONTE FGSPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 10 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    EPDMNITRILEKg
    32/40149G012313149G0196652.9
    50149G012322149G0265943.3
    65149G012332149G0123993.7
    80149G012339149G0124014.0
    100149G059541149G0124037.1
    125149G012360149G0124067.7
    150149G012368149G0124099.1
    200149G42089149G4210916.6
    250149G42090149G42110(1)23.2
    300149G42091149G42111(1)25.6
  • Sylax

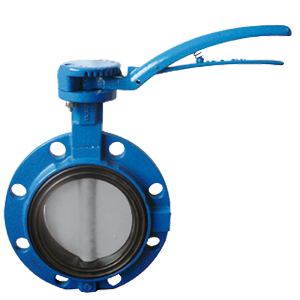

    SYLAX BRIDE CENTRALE
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    EPDMNITRILEKg
    80149G044978149G0933244.7
    100149G093228149G0933227.5
    125149G044979149G0933239.4
    150149G044980149G04498911.0
    200149G043294149G04499019.2
  • Sylax
    SYLAX OREILLES TARAUDEES
    1) PFA = PS maxi = 10 bar et PN10 (2) PFA = PS maxi = 10 bar et PN16 (3) PFA = PS maxi = 16 bar et PN16
    Raccordement PN 10/16
    Dn
    mm
    EPDMNITRILEKg
    50149G028008149G0117203.7
    65149G011686149G0117224.2
    80149G011691149G0117245.1
    100149G011696149G0117267.6
    125149G028007149G01172810.2
    150149G028006149G05935811.7
    200149G092060(1)149G41509(1)23.0
    250149G41490(1)149G025988(1)30.0
    300149G41491(1)149G41511(1)32.2
    Sylax
    SYLAX OREILLES TARAUDEES
    1) PFA = PS maxi = 10 bar et PN10 (2) PFA = PS maxi = 10 bar et PN16 (3) PFA = PS maxi = 16 bar et PN16
    Raccordement PN 10/16
    Dn
    mm
    EPDMNITRILEKg
    32149G016753149G0167553.4
    40149G016754149G0596263.4
    50149G016219149G0163033.7
    65149G012574149G0596285.1
    80149G012577149G0386785.0
    100149G012585149G0126027.7
    125149G012584149G01260510.0
    150149G012586149G01260711.6
    200149G42492( 3)149G45212(3)23.1
    250149G42493(3)149G42513 (2)28.3
    300149G42494(3)149G42514 (2)38.1
    200149G42489(1)149G42509(1)23.6
    250149G42490(1)149G42510(1)28.4
    300149G42491(1)149G42511(1)31.0
  • SILICONE
    θ -10°/+200° avec coprs FGL
    θ -25°/+200° avec coprs FGS
    Air ou gaz sec chauds, eau glacée, process industriels
  • CORPS FONTE FGSPFA 10 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16 (3) PN10 (4) PN16
    Raccordement PN 10/16
    Dn
    mm
    SILICONEKg
    50149G0394903.7
    65149G0394914.2
    80149G0394925.1
    100149G0394937.6
    125149G03949410.2
    150149G03949511.8
    200149G039496 (1)23.4
    250149G039497 (1)30.0
    300149G039498 (1)32.3
    CORPS FONTE FGLPFA 10 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES TARAUDEES
    (1) PFA = PS maxi = 6 bar et PN10 (2) PFA = PS maxi = 6 bar et PN16 (3) PN10 (4) PN16
    Raccordement PN 10/16
    Dn
    mm
    SILICONEKg
    32149G0221264.5
    40149G0221304.5
    50149G0221344.8
    65149G0221385.1
    80149G0221425.0
    100149G0221467.7
    125149G02215010.1
    150149G01467611.7
    200149G022173 (2)23.4
    250149G022177 (2)27.2
    300149G022181 (2)29.4
    200149G022158 (1)23.9
    250149G022162 (1)27.3
    300149G022166 (1)31.1
  • Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    SILICONEKg
    32/40149G0394742.6
    50149G0394753.3
    65149G0394763.8
    80149G0394774.0
    100149G0881876.3
    125149G0394797.8
    150149G0394809.3
    200149G039481 (1)17.1
    250149G039482 (1)23.4
    300149G039483 (1)25.6
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 6 bar
    Raccordement PN 6/10/16/ASA 150
    Dn
    mm
    SILICONEKg
    32/40149G0207712.9
    50149G0207753.3
    65149G0207793.7
    80149G0165434.0
    100149G0207877.1
    125149G0207917.8
    150149G0172299.1
    200149G020799 (1)19.9
    250149G020803 (1)23.2
    300149G020807 (1)25.3
  • EPDM
    θ -15°/+120°
    Eau potable, circuits généraux et process industriels, eau de piscine
  • NITRILE
    θ +5°/+85°
    Circuits généraux et process industriels, hydrocarbures
  • CORPS ACIERPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 10 bar
    Raccordement PN 10/16
    Dn
    mm
    EPDMNITRILEKg
    32/40149G 041 699149G 041 7002.8
    50149G 016 771149G 016 7803.0
    65149G 016 772149G 016 7813.0
    80149G 016 773149G 016 7823.2
    100149G 016 774149G 016 7834.2
    125149G 016 775149G 016 7848.5
    150149G 016 776149G 016 7859.5
    200149G 016 777149G 016 78618.2
    250149G 016 778149G 016 797(1)25.2
    300149G 016 779149G 016 798(1)30.8
    CORPS INOXPFA 16 bar (water) / PS (p.84)
    Sylax
    SYLAX OREILLES DE CENTRAGE
    (1) PFA = PS maxi = 10 bar
    Raccordement PN 10/16
    Dn
    mm
    EPDMNITRILEKg
    32/40149G 016 610149G 018 5602.8
    50149G 012 987149G 016 8183.0
    65149G 012 991149G 016 8193.0
    80149G 012 993149G 016 8204.3
    100149G 012 998149G 016 8164.2
    125149G 015 990149G 016 8218.5
    150149G 013 005149G 016 8179.5
    200149G 013 009149G 016 82218.2
    250149G 016 814149G 016 823(1)25.2
    300149G 016 815149G 016 824(1)30.8
  • Sylax
    SYLAX OREILLES TARAUDEES
    (1) ISO PN10 et PN10
    (2) ISO PN10
    (3) ISO PN16
    Raccordement PN 10/16
    Dn
    mm
    EPDMNITRILEKg
    50149G 020 660149G 020 6693.9
    65149G 020 661149G 020 6704.9
    80149G 020 662149G 020 6713.2
    100149G 020 663149G 020 6725.9
    125149G 063 722149G 020 6735.9
    150149G 020 665149G 020 6747.0
    200149G 020 666(3)149G 020 675(3)34.0
    250149G 020 667(3)149G 020 676(2)44.0
    300149G 020 668(3)149G 020 677(2)58.0
    200149G 041 721(1)149G 041 724(1)34.0
    250149G 041 722(1)149G 041 725(1)44.0
    300149G 041 723(1)149G 041 726(1)58.0
Animations
